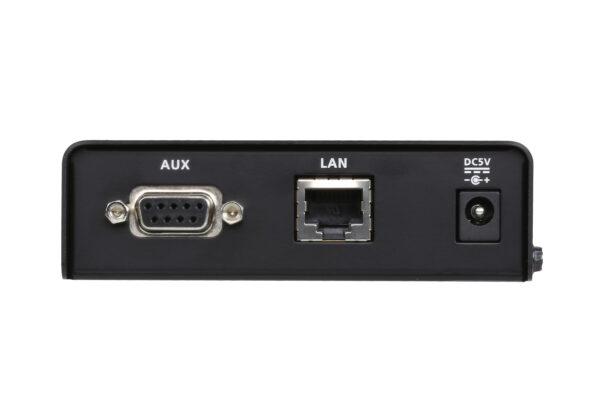

USB DVI-D Single Display Slim KVM Over IP Transmitter – KE6900ST
- Visually lossless video compression up to 1920 × 1200 @ 60Hz with low latency; 8-bit RGB (24-bit total color)
- Flexible connections – allows multiple extender and matrix conections for Multi-Display installations and Video Wall applications
- Slim, light, and fanless design
- Slim Matrix Mode is ideal for small-scale control room applications
Description
The KE6900ST Slim DVI-D KVM over IP Extender is a compact and affordable high performance IP-based transmitter that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI-D monitor over an intranet, enabling users to locate computers in a secure and temperature controlled environment, which is isolated from users’ workstation. All the extenders can be paired with any KE series* receiver or transmitter for a savings solution that stays within budget.

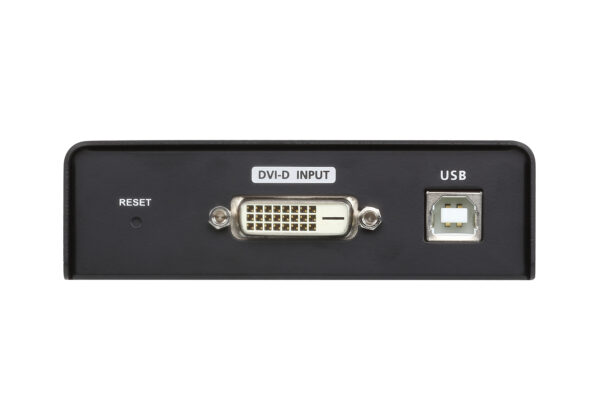

The KE6900ST supports DVI-D video input from the computer. The transmitter provides video resolutions up to 1920 x 1200 @ 60 Hz and offer flawless and visually lossless video quality with low latency. The extender also supports Virtual Media function and RS-232 serial commands.
The KE6900ST can be set on a desk, mounted on a wall or at the rear of a rack with its space-saving 0U rack mount design. The KVM over IP extender provides multiple ways for configuration, such as the receiver’s local OSD, CCKM, or RS-232 / Telnet text menu. The KVM over IP extender also offers enhanced security features such as supporting AES encryption for secured Video / Keyboard / Mouse / USB data transmissions and RADIUS / LDAP / AD or remote user authentication that provides an added layer of connection security.
When integrated with the CCKM, the KVM over IP extender supports more advanced features such as boundless switching, fast switching, video wall, multi display, profile scheduling, auto detection of all KE Series extenders on the same subnet for the sake of fast installation or configuration, as well as username / password authentication and authorization. Please refer to the CCKM webpage for more details.
When working without the CCKM centralized management, the KVM over IP extender features the Slim Matrix Mode that makes up to 12 units of KE6900ST / KE8900ST / KE9900ST connect with unlimited Rx units. It means up to 12 IPs can be used to set transmitters.
Whether the user is configuring, monitoring, administrating, controlling or extending computer access, the KVM over IP Matrix System is made adaptable, to fit an endless variety of working environments and workstation settings, as well as to provide solutions in broadcasting, control center, multimedia, manufacturing and many other industries where matrix extending is required.
Note: Please visit www.aten.com comprehensive list of the KVM over IP extenders.
Package Contents
- 1x KE6900ST DVI KVM over IP Transmitter
- 1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
- 4x Foot Pads
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions*
