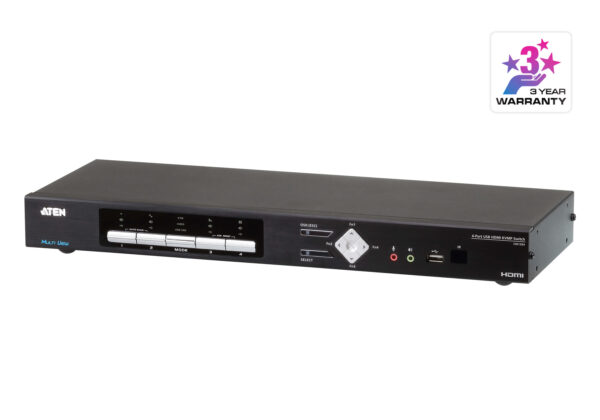

4-Port USB 4K HDMI Multi-View KVMP™ Switch – CM1284
- 4-Port USB HDMI Multi-View KVMP switch with Dual Display. One display is with Quad and PiP/PbP/PoP modes, and the other is with full-screen mode
- Easily resize and / or reposition any PiP or PbP to suit users’ viewing needs; Supports superior video quality – up to 4K DCI @ 30Hz(4096 x 2160 @ 30Hz) ; YCbCr 4 :2 : 2
- DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 units from a single console; Cascade up to 2 levels – Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
- Boundless Switching – simply move the mouse cursor across windows to switch to other video sources even among the daisy chained installation
Description

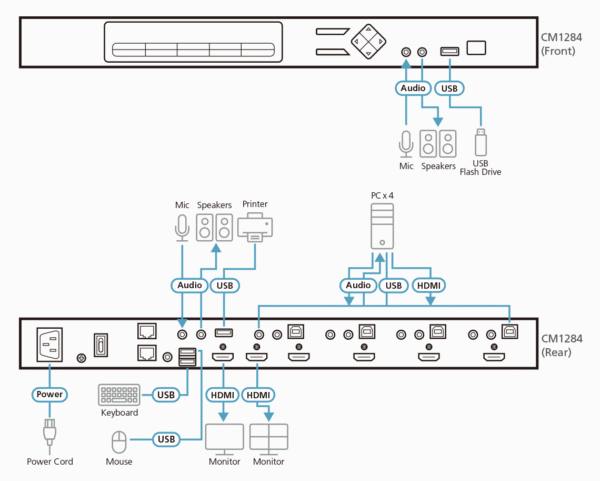

The CM1284 allows for connection of up to 4 HDMI computers and 2 HDMI displays, facilitating real-time monitoring of multiple video sources on a single multi-view display with up to 4K DCI visual quality. Multiple video sources can be selected, switched and displayed simultaneously with independent keyboard and mouse control. This innovative Multi-View KVMP™ Switch is also equipped with a 2-port USB hub permitting each computer to access connected peripherals while the USB peripheral switching can be independent of the KVM focus, making desktop multitasking truly effortless and productive.
Versatile Display Modes

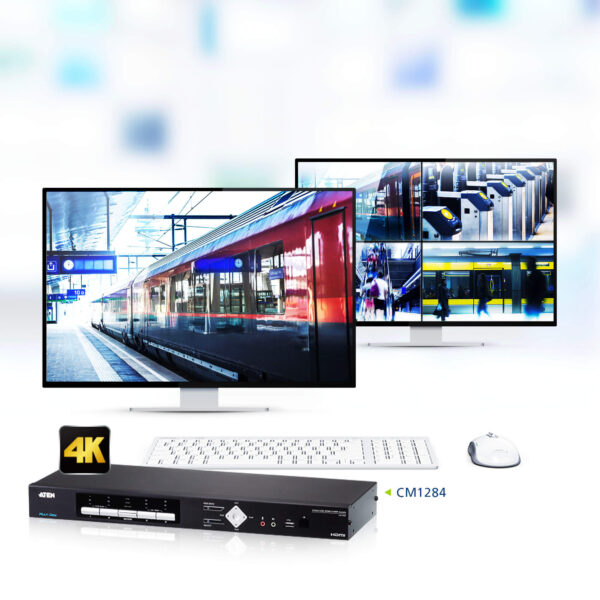

With dual output setup, multi-sourced video data can be displayed in various display modes – Full Screen, Quad View, PiP (picture in picture), PbP (picture by picture), and PoP (picture on picture) on the primary display, while a selected source can be shown in full screen on the secondary display, improving operational efficiency without missing any important details.
Intuitive Boundless Switching
ATEN’s Boundless Switching features instant access and control to target any video source by allowing the mouse cursor to move across window borders boundlessly and seamlessly.
Contact Us
Get a quote for this product or get in touch with our sales experts
Daisy Chain & Cascade Support
With Daisy Chain Control (DCC) capability, the CM1284 can control 3 additional CM1284 units (up to 16 video sources) via a single console.
Furthermore, it can also be cascaded up to 2 levels by connecting additional 4 CM1284 units (up to 16 video sources) via a single console with video displayed in up to 4×4 multi-view mode.
Applications
The CM1284 Multi-View KVMP™ Switch is ideal for desktop operations in time critical scenarios that require real-time monitoring of multiple video sources and a prompt responsive approach, such as control-desk applications in broadcast or surveillance environments.
Product Comparison
| Option |
4-Port USB 4K HDMI Multi-View KVMP™ Switch
|
4-Port USB DVI Multi-View KVMP™ Switch
|
|---|---|---|
| Number of Computers |
4
|
4
|
| Computer Interface |
USB
HDMI
|
USB
DVI-D
|
| Console Interface |
USB
HDMI
|
USB
DVI-D
|
| Max. Resolution |
4096 x 2160@30Hz
|
1920 x 1200 @ 60Hz
|
| Boundless Switching | ||
| EDID Support | ||
| USB Peripheral | ||
| Firmware Upgradable | ||
| Dual Display |
N/A
|
|
| Video DynaSync™ | ||
| Power on detection | ||
| Auto Scan | ||
| Mounting Kit | ||
| HD Audio |
N/A
|
|
| Independent Switching | ||
| Multiview mode | ||
| 7.1 Surround Audio |
N/A
|
|
| Cascadable | ||
| IR | ||
| Daisy Chain | ||
| RS-232 Control | ||
| RS-232 Support | ||
| Audio |
Speaker
Microphone
|
Speaker
Microphone
|
| Multi-Platform Support |
Windows
Mac
Sun
Linux
|
Windows
Mac
Sun
Linux
|
| USB Standard |
2.0
|
2.0
|
